SPECIFICATIONS
-

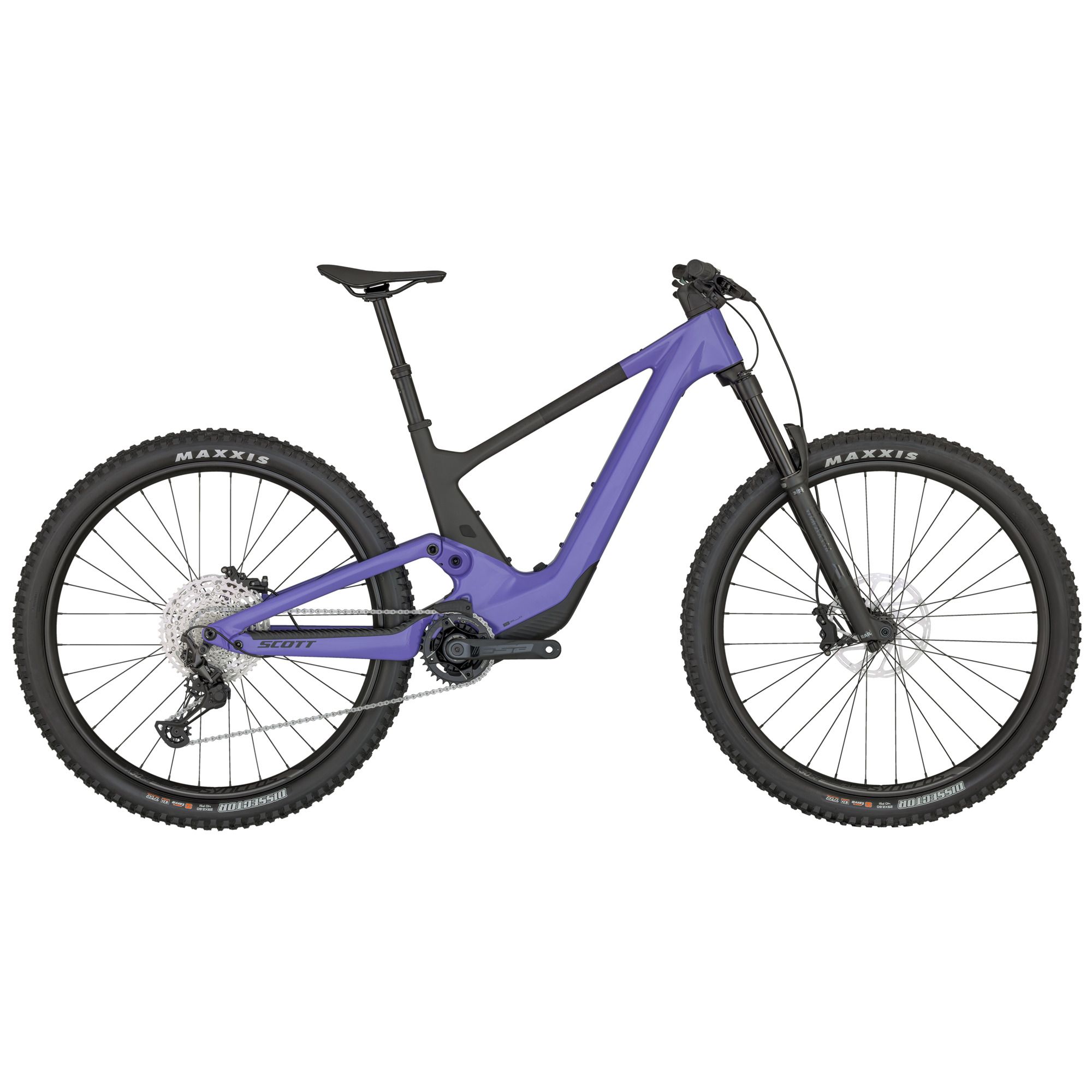

Imagine giving the world’s best trail bike a secret weapon. With the Contessa Voltage eRIDE, that’s just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Contessa Voltage eRIDE overdelivers trail after trail… after trail.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon HMF
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline -
Travel
Front: 150mm / Rear: 155mm -
Fork
Marzocchi Z2 Air Rail
3 modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 150mm travel -
Rear Shock
FOX Float Custom EVOL Performace Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 155mm / T185X55mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes -
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph -
Battery
TQ Internal 360Wh -
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app -
Charger
TQ 100-240V-4A -
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed -
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
I-spec EV clamp -
Crankset
FSA Alloy crankset / 175mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
Scott custom spider / FSA 12Speed 34T chainring -
Chain
Shimano CN-M6100 -
Cassette
Shimano CS-M6100 / 10-51T -
Brakes
SRAM DB8 4 Piston Disc -
Rotor
SRAM Centerline CL Rotors F&R 200mm -
Handlebar
Syncros Hixon 2.0 Alloy 6061 D.B.
12mm Rise / back sweep 8° / 780mm
Syncros Endurance lock-on grips -
H’stem
Syncros AM 2.0
Syncros Cable Integration System
4° rise / 6061 Alloy / 31.8mm / 1 1/8″ -
Seatpost
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L size 170mm -
Seat
Syncros Savona 2.0 -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula CL-148M / 12x148mm -
Spokes
Stainless Black 15G / 1.8mm -
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready -
Front Tire
Maxxis Dissector / 29×2.6″ / 60TPI Wire Bead
EXO
Dual -
Rear Tire
Maxxis Dissector / 29×2.6″ / 60TPI Wire Bead
EXO
Dual -
Approx weight in KG
19.3 (with tubes) -
Approx weight in LBS
42.55 (with tubes) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
