Descriere
SPECIFICATIONS
-

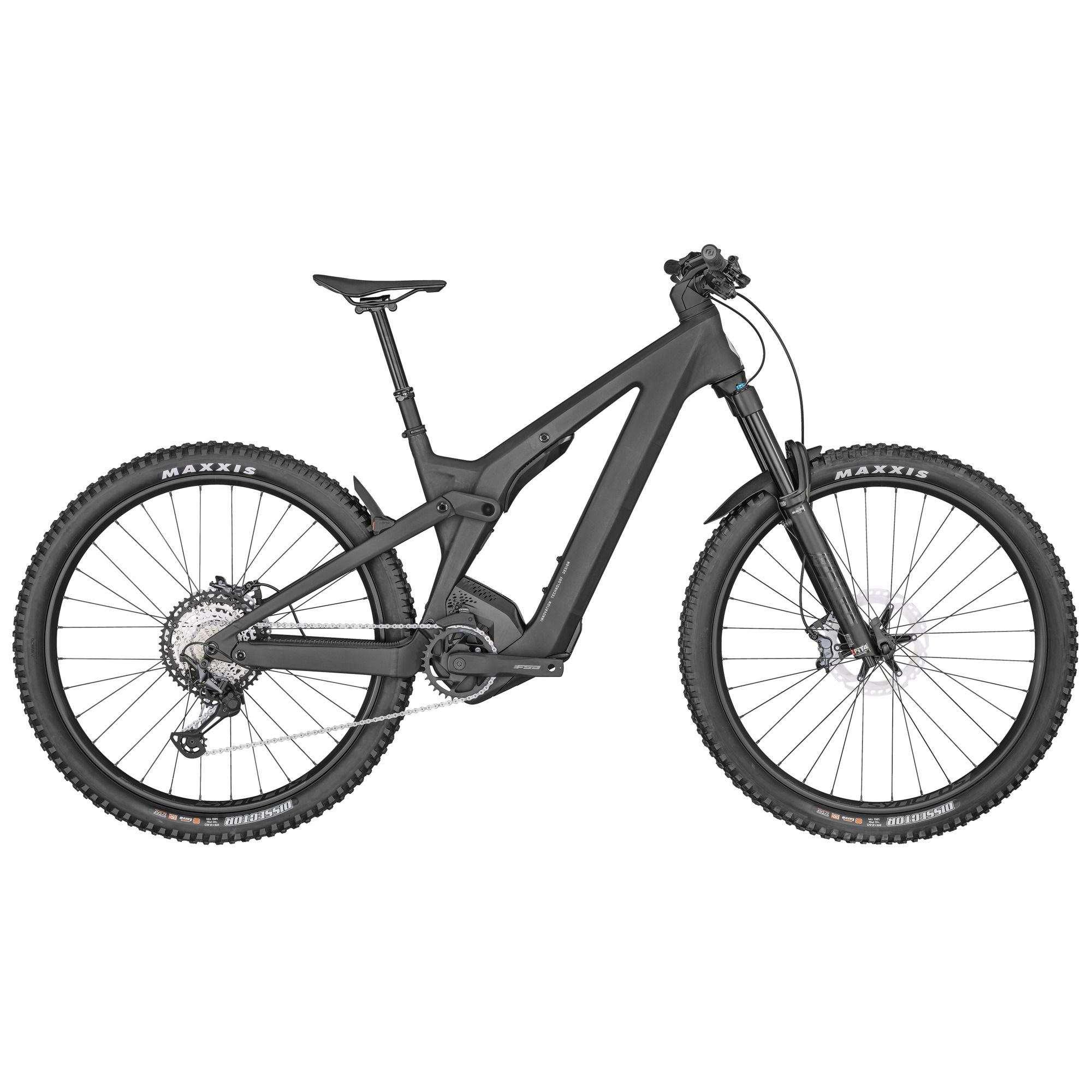

The Patron eRIDE 900 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – boss the trails.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon Main Frame / Alloy SST-CST-Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8″ Headtube
Central Kickstand Mount
Integr. Cable -
Travel
Front: 160mm / Rear: 160mm -
Fork
FOX 38 Perf. Elite Air / eMTB+ / FIT4
3 modes with low Speed adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel -
Rear Shock
FOX NUDE T eRIDE EVOL / Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom large air volume / DPS / Reb. Adj.
Travel 160-115-Lockout / 205X60mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes -
Drive Unit
Bosch Performance CX
EU: 25kmh / INT: 20mph -
Battery
PowerTube 750Wh -
Display
Bosch LED Remote & Kiox 300 -
Charger
4A Charger -
Rear Derailleur
Shimano XT / 12 Speed -
Shifters
Shimano SL-M8100 -
Crankset
FSA CK-745 165mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
FSA W0138+WB499 / 34T / Steel -
Chain
Shimano CN-M8100 -
Cassette
Shimano CS-M8100 / 10-51T -
Brakes
Shimano XT / BR-M8120 4 Piston -
Rotor
Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm -
Handlebar
Syncros Hixon 1.5 / Alloy 7050D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips -
H’stem
Syncros AM1.5 / 7050 Alloy
31.8mm / 4° / 1 1/8″ -
Seatpost
FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Acros / 1.8″
ZS66 OD74 / integr. Cable -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula ECT-1481 / Boost 148x12mm -
Spokes
Stainless Black -
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
Front Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed -
Extras
Syncros Fork Fender -
Approx weight in KG
24.6 (with tubes) -
Approx weight in LBS
54.23 (with tubes) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
