Descriere
SPECIFICATIONS
-

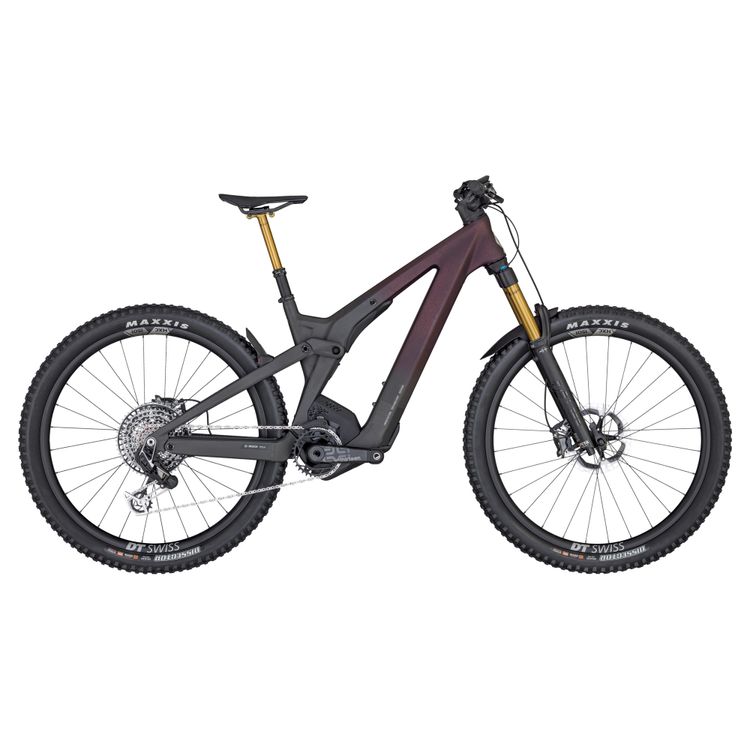

The Patron eRIDE 900 Ultimate was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – Boss the trails.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon Main Frame & SST / Alloy CST-Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem/ Integr. removable Battery
1.8″ Headtube, Central Kickstand Mount
Integr. Cable -
Travel
Front: 160mm / Rear: 160mm -
Fork
FOX 38 Float Factory Air / Kashima / eMTB+ / FIT4
3 modes with low Speed adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel -
Rear Shock
FOX NUDE T eRIDE EVOL Kashima / Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom large air volume / DPS / Reb. Adj.
Travel 160-115-Lockout / 205X60mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes -
Drive Unit
Bosch Performance CX-R
EU: 25kmh / INT: 20mph -
Battery
PowerTube 750Wh -
Display
Bosch LED Remote & Kiox 300 -
Charger
4A Charger -
Rear Derailleur
SRAM XX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM AXS Pod Ultimate Controller -
Crankset
e*thirteen / e*spec Race Carbon / 165mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
SRAM Eagle Transmission 34T chainring DM / Steel -
Chain
SRAM CN XX Eagle Transmission -
Cassette
SRAM XX Eagle XS 1297 Transmission 10-52T -
Brakes
Shimano XTR / BR-M9120 4 Piston Disc -
Rotor
Front: RT-MT900 CL 203mm / Rear: RT-EM900 CL 203mm -
Handlebar
Syncros Hixon iC SL / 15mm Rise / integrated cockpit
S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension
7° backsweep / 6° upsweep / Syncros Endurance lock-on grips -
Seatpost
FOX Transfer Factory Dropper Post Kashima
31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm -
Seat
Syncros Tofino 1.0 Regular
Carbon rails -
Headset
Acros / 1.8″
ZS66 OD74 / integr. Cable -
Wheelset
DT Swiss HXC1501 CL
F: 15x110mm
R: 12x148mm Boost
30mm Tubeless ready Carbon rim 28H / XD Driver
Syncros Axle w/Removable Lever with Tool -
Front Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed -
Extras
Syncros Fork Fender
SRAM AXS Extension Cord -
Approx weight in KG
23.5 (with tubes) -
Approx weight in LBS
51.81 (with tubes) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
