SPECIFICATIONS
-

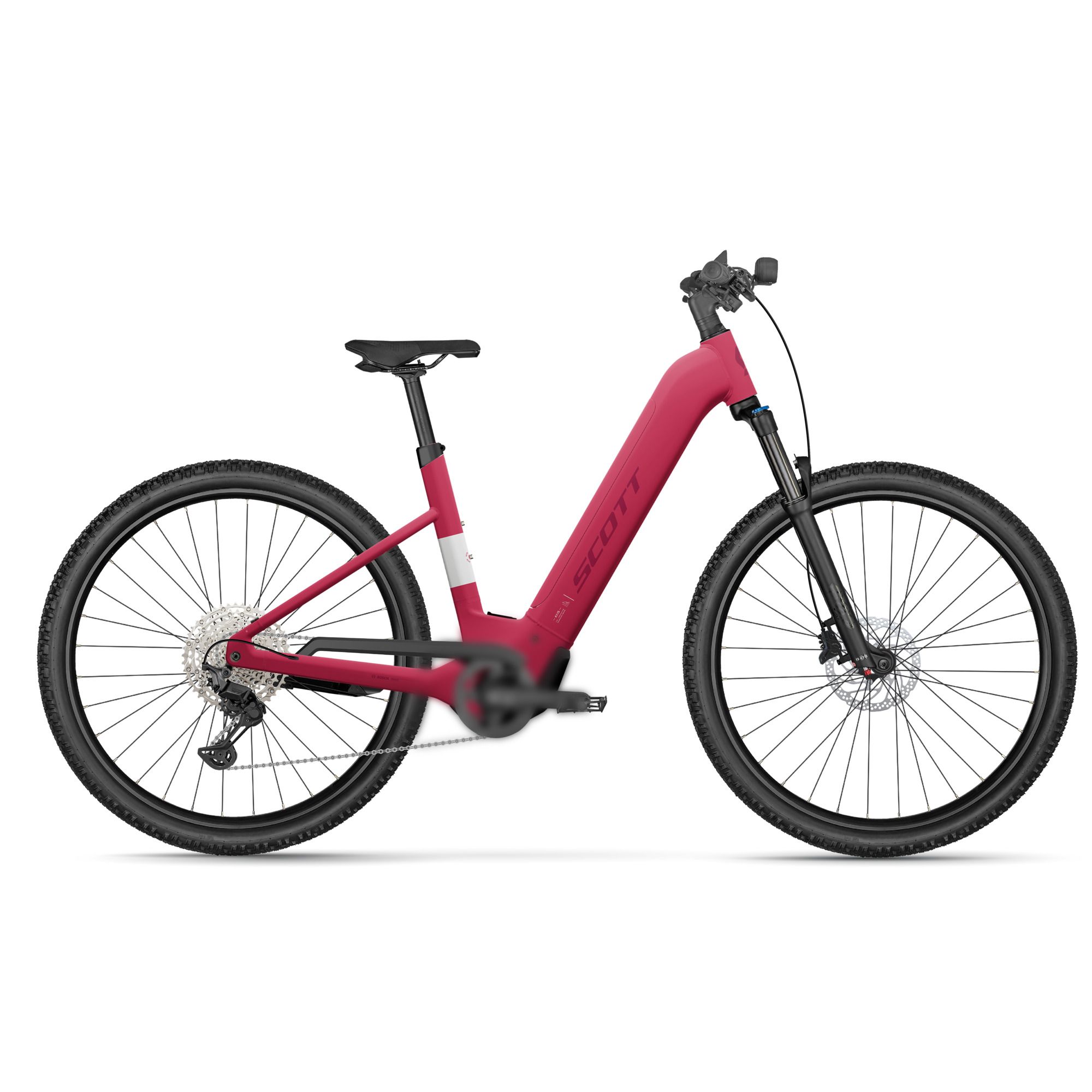

More autonomy, more connectivity and the latest Bosch technology featured in an accessible package. From off road commuting to your local trails, the Aspect is all about versatility and fun.
Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy XS-XL=29″”, 6061 Alloy custom butted tubing
Side extraction battery
UDH Interface, 12x148mm with 52mm Chainline -
Travel
120mm -
Fork
SR Suntour XCR34X LOR Air, Tapered 120mm Travel, 15×110 bolt Axle, Remote Lock Out -
Remote System
SR Suntour Remote
-
Drive Unit
Bosch Performance CX, EU: 25kmh -
Battery
PowerTube 800Wh -
Display
Bosch System Controller
Kiox 300
Mini Remote -
Charger
4A Charger -
Rear Derailleur
Shimano Deore RD-M6100 SGS
Shadow Plus, 12 Speed -
Shifters
Shimano Deore Trigger SL-M6100RC -
Crankset
FSA CK-220
165mm -
Chainring
FSA 36T w/Chain Guard -
Chain
KMC e12S -
Cassette
Shimano CS-M6100, 10-51 -
Brakes
Shimano BR-MT420 Disc Brakes -
Rotor
Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 180mm -
Handlebar
Syncros 3.0 720mm, 31.8mm, 9°, 12mm rise
Syncros Comfort lock-on grips -
H’stem
Syncros AM2.0, 6061 Alloy
31.8mm, 0° -
Seatpost
Syncros M3.0, 31.6mm
350mm -
Seat
Syncros Tofino E 2.0 -
Headset
Acros, 1.5″”- 1.5″”
semi integ. OD 50/61mm, ID 44/55mm -
Hub (Front)
Formula CL-811, 15x110mm -
Hub (Rear)
Formula MSC-148S, 148x12mm -
Spokes
Black Spokes -
Rims
Cross X19, 32H, 30mm, Pin Joint
Tubeless ready -
Front Tire
Kenda Booster 29×2.6″”, 30TPI -
Rear Tire
Kenda Booster 29×2.6″”, 30TPI -
Lights
Bosch Light Cable pre-installed F&R -
Approx weight in KG
26.7 -
Approx weight in LBS
58.86 -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
„
