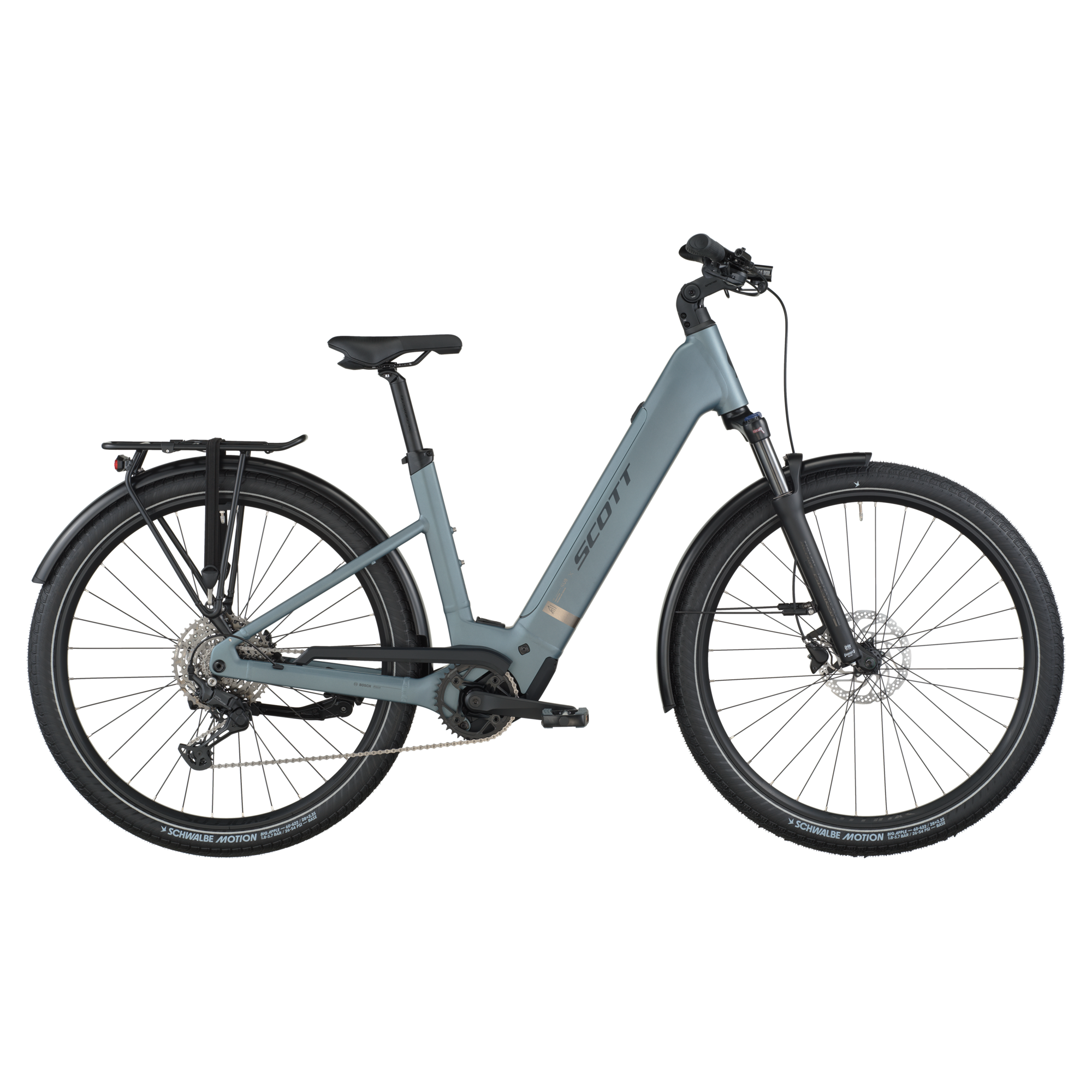

The Sub Sport 20 Wave E-Bike is the smart and convenient way to embrace cycling in the city and a great value. With its step-through frame design that favors most riders and its strong, user-friendly Bosch motor, it’s a bike that makes urban riding a breeze and delivers range for every journey.
Its frame shape eliminates the need to throw a leg over the saddle, and makes it an approachable design that’s comfortable to mount and dismount, and versatile with any type of clothing you’ll be pedaling to your destination.
The Sub Sport 20 Wave uses the quiet Bosch’s Performance PX motor and an 600Wh battery unit. When you start pedaling, the power delivery feels smooth and natural, inspiring confidence for rides in busier areas of town and navigating inclines. There are also multiple mode settings to select to dial in the perfect amount of juice you need for any ride you’ll do on Sub Sport.
Its balanced geometry, stable platform, and front suspension provide exceptional handling, ensuring a comfortable ride even on rough pavement.
Whether you’re commuting to work, running errands, or embarking on longer routes, the Sub Sport 20 Wave excels, and can carry up to 25kg on its rear rack (fitting an optional kids’ seat for the little ones). Combined with Shimano’s 10-speed drivetrain, it offers the perfect gearing and power to make urban riding the most efficient and enjoyable way to get around.
Please note that bike specifications are subject to change without prior notice.
-
Frame
Alloy S-XL=29″, 6061 Alloy custom butted tubing
Top extraction battery
UDH Interface, 12x148mm with 52mm Chainline -
Travel
100mm -
Fork
SR Suntour XCM34 LO Coil, Tapered, 15×110 bolt Axle, Lock Out, 100mm Travel -
Drive Unit
Bosch Performance Line PX (BDU347Y)
EU: 25kmh
-
Battery
PowerTube 600Wh -
Display
Bosch Purion 200 -
Charger
2A Charger -
Shifters
Shimano CUES RD-U6000GS 10 Speed -
Crankset
FSA CK-220 170mm -
Chainguide
Syncros -
Chainring
FSA 38T -
Chain
Shimano LG500 -
Cassette
Shimano CS-LG40010 11-48 T -
Brakes
Shimano BR-MT200 Disc -
Rotor
Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm -
Handlebar
Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° -
H’stem
Syncros UC 3.0 adjustable with front Light mount -
Seatpost
Syncros 3.0, 31.6mm, 350mm -
Seat
Syncros Capilano -
Headset
Acros, 1.5″- 1.5″
semi integ. OD 50/61mm, ID 44/55mm -
Front Hub
Shimano HBTC50015BB CL, 15x110mm -
Rear Hub
Shimano FHTC500HMBB, 148x12mm -
Spokes
Black Spokes -
Rims
Syncros X18 Disc -
Front Tire
Schwalbe Big Apple Performance, 60-622 -
Rear Tire
Schwalbe Big Apple Performance, 60-622 -
Lights
Front Lezyne Hecto E65
Rear Lezyne Light -
Rack
Racktime carrier SnapIt 2.0 25KG -
Pedals
Marwi SP-828 -
Approx weight in KG
29.8 -
Approx weight in LBS
65.7 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
