SPECIFICATIONS
-

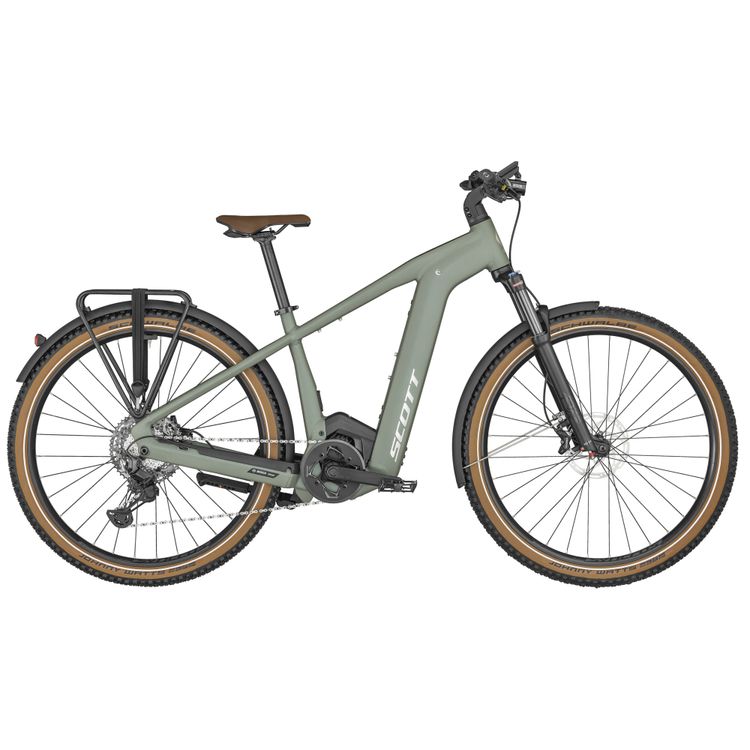

With the SCOTT Axis eRIDE 10, charge up the battery, set your course or activity, head out and don’t look back. The Bosch Smart System allows you to explore for hours. Want to take some extra kit with you? No problem, load up the rack for the ride and you’re good to go explore.
Please note that bike specifications are subject to change without prior notice.
-
Frame
6061 Alloy custom butted tubing
Bosch Integr. removable Battery
internal cable routing -
Fork
SR Suntour XCR34 Air / Tapered / S-XL 29″ / 120mm Travel / 15×110 bolt Axle / Remote Lock Out -
Drive Unit
Bosch Performance CX BES3 -
Battery
PowerTube 750Wh
-
Display
Kiox 300 Display -
Charger
4A Charger -
Rear Derailleur
Shimano RD M8130SGS Linkgilde / 11 Speed -
Shifters
Shimano XT RD M8130SGS Linkgilde / 11 Speed -
Crankset
Miranda 172,5mm -
Chainring
38T Chainflow / Chainprotector -
Chain
KMC E11S -
Cassette
Shimano CS-LG600-11 11-50T 11S -
Brakes
Tektro HD-M745 4 Piston -
Rotor
Front: TR180-35 CL 180mm / Rear: TR180-35 CL 180mm -
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise
Syncros Lock On Grip -
H’stem
Syncros with front Light mount and Kiox 300 mount -
Seatpost
Syncros M3.0 / 31.6 -
Seat
Syncros Capilano -
Headset
Acros / 1.5″- 1.5″
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HB-MT400 / 15x110mm -
Hub (Rear)
Shimano FH-MT400 / Boost 12x148mm -
Spokes
Black Spokes -
Rims
Syncros X18 Disc -
Front Tire
Schwalbe Johnny Watts 29×2.35″ Wired -
Rear Tire
Schwalbe Johnny Watts 29×2.35″ Wired -
Lights
Front Lezyne EBIKE CLASSIC 500 Lumen
Rear Lezyne Fender -
Rack
Axis by Racktime SnapIt 2.0 25KG -
Pedals
VP VPE-506 -
Extras
Curana alloy profile Fender / Ursus Kickstand -
Approx weight in KG
28.76 -
Approx weight in LBS
63.4 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
