SPECIFICATIONS
-

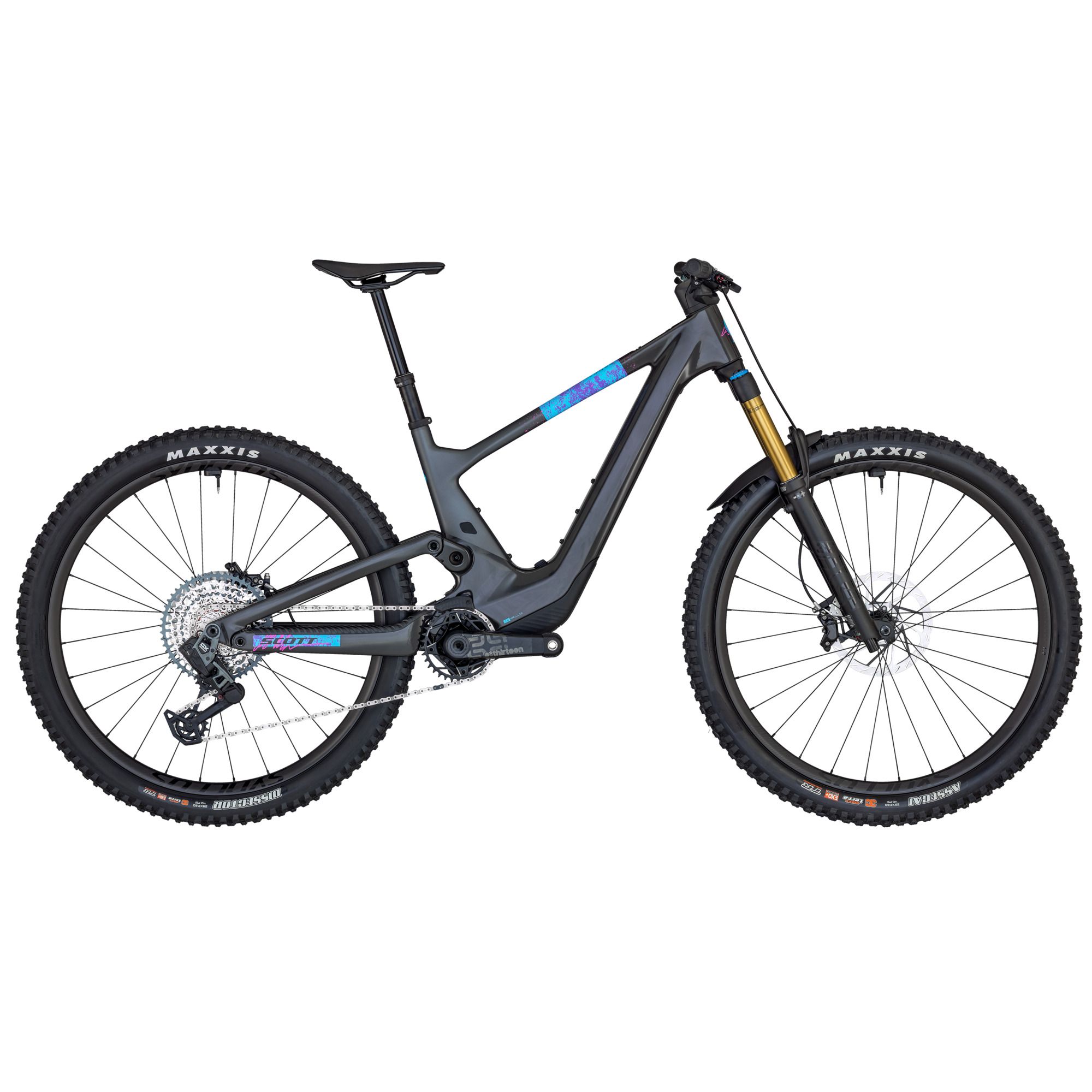

Imagine the giving the world’s best trail bike a secret weapon. With the Voltage eRIDE, that’s just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail… after trail.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon HMF
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Range Extender Ready -
Travel
Front: 160mm / Rear: 155mm -
Fork
FOX 36 Float Factory Grip 2 Air / Kashima
HSC – LSC – HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
160mm travel -
Rear Shock
FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion
Kashima / SCOTT custom w. travel / geo adj.
3 modes: Climb-Ramp Control-Descend
Custom large Air volume / Comp & Reb. Adj.
Travel 155-100-Climb / T185X55mm
-
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes -
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph -
Battery
TQ Internal 360Wh -
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app -
Charger
TQ 100-240V-4A -
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM GX Eagle AXS Rocker Controller -
Crankset
e*thirteen / e*spec Race Carbon / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
Scott custom spider / SRAM Eagle Transmission 34T chainring -
Chain
SRAM CN GX Eagle Transmission -
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52 -
Brakes
SRAM Code Silver Stealth 4-Piston Disc -
Rotor
SRAM HS2 Rotors F&R 200mm -
Handlebar
Syncros Hixon iC Carbon
Size S & M 15mm rise / Size L & XL 25mm rise
back sweep 8° / 780mm
Syncros Endurance lock-on grips -
Seatpost
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
S size 140mm / M size 180mm / L & XL size 210mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Revelstoke 1.0-30 CL
F: 15x110mm
R: 12x148mm
30mm Tubeless ready Carbon rim 28H
DT Swiss Ratchet Hubs / XD Driver
SRAM TyreWiz / Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Front Tire
Maxxis Assegai / 2.6″ / 60TPI Foldable
Tubeless Ready / EXO+ 3C maxx Terra -
Rear Tire
Maxxis Dissector / 2.6″ / 60TPI Foldable
Tubeless Ready / EXO+ 3C maxx Terra -
Extras
SRAM AXS Extension Cord
SRAM TyreWiz
Syncros Fork Fender -
Approx weight in KG
18.6 (with tubes) -
Approx weight in LBS
41.01 (with tubes) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
