Descriere
SPECIFICATIONS
-

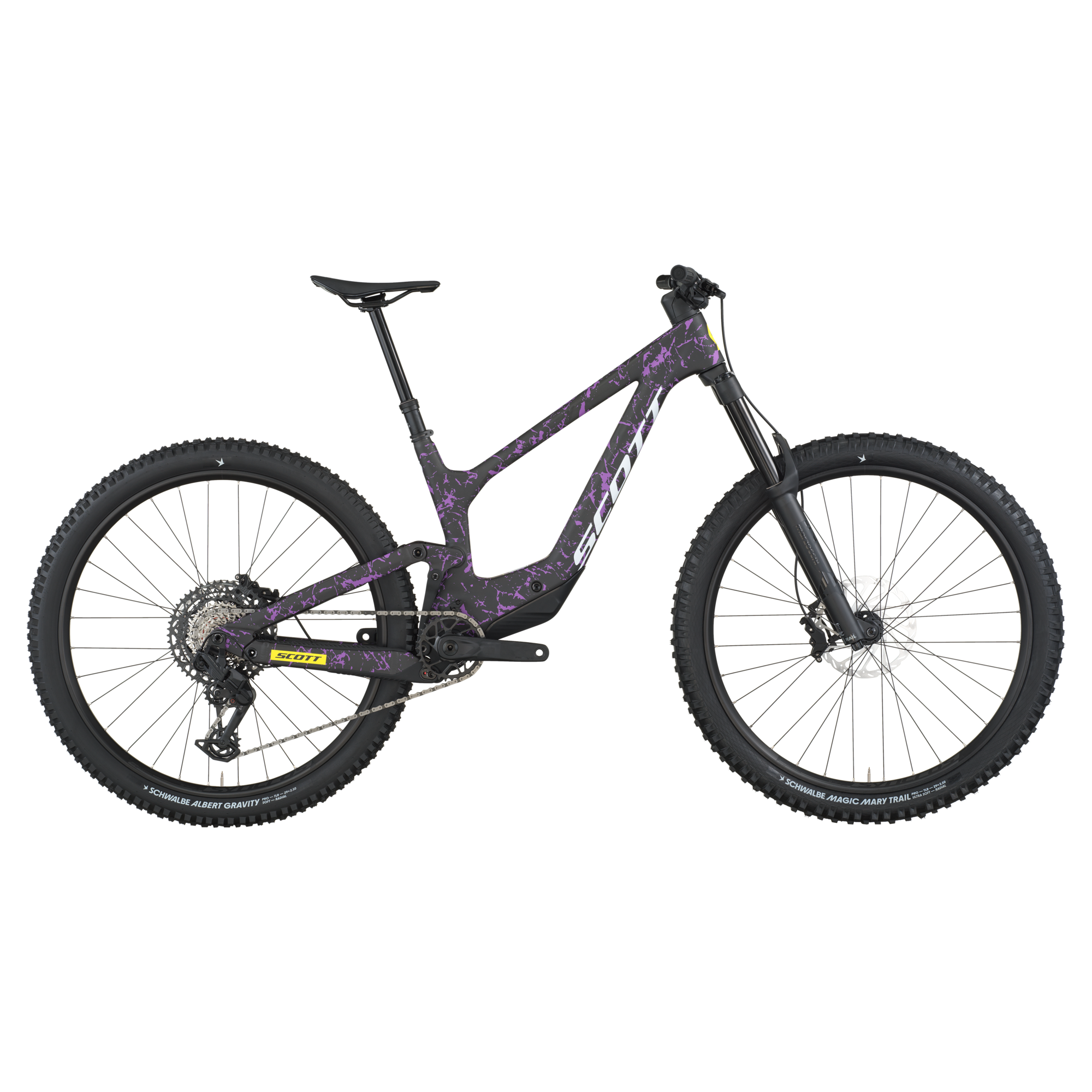

Introducing the SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.
Please note that bike specifications are subject to change without prior notice.
condition of usage 5Example Downhill, dirt jump, freeride
Please check the detail for more information -
Frame
Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm
Integrated Suspension Technology, 6 Link kinematic, Adjustable head angle
Syncros Cable Integration System
BB92, UDH Interface, 12x148mm with 55mm Chainline, MX Ready -
Fork
Marzocchi Z1, Rail 3 , LSC-LSR adjustable, 15x110mm, 44mm offset, Tapered steerer, 170mm travel -
Rear Shock
Marzocchi Bomber Air, Scott Custom Tuned, Comp & Reb adjust, T205x65mm, 170mm travel -
Rear Derailleur
SRAM Eagle 70 Transmission 12 Speed
-
Shifters
SRAM Eagle 70 Trigger -
Crankset
SRAM Eagle 70 Transmission
DUB, 55mm CL, 34T -
Chainguide
SCOTT custom -
BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm -
Chain
SRAM CN Eagle 70 Transmission -
Cassette
SRAM Eagle XS 1270 V2 Transmission 10-52 -
Brakes
SRAM DB8 Stealth 4 Piston Disc -
Rotor
SRAM Centerline Rotors F&R 200mm -
Handlebar
Syncros Hixon 2.0 Alloy 6061 D.B.
Size S & M 12mm Rise, Size L & XL 20mm Rise, back sweep 8°, 780mm
Syncros AM lock-on grips -
H’stem
Syncros AM 2.0
Syncros Cable Integration System
4° rise, 6061 Alloy, 31.8mm, 40mm -
Seatpost
Syncros Duncan Dropper Post 1.5S, Travel Adjust, 31.6mm
S size 140mm, M size 180mm, L & XL size 210mm -
Seat
Syncros Tofino 2.0
Crmo Rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula SCT-1905, 110x15mm, thru axle -
Hub (Rear)
Formula SCT-1910
148x12mm thru axle, sealed bearings -
Spokes
Stainless Black 15G, 1.8mm -
Rims
Alexrims MD30 Disc, 32H black, 30mm, Tubeless Ready -
Front Tire
Schwalbe Magic Mary 29×2.5″, Trail, Radial, Ultra Soft, Tubeless ready
120TPI Foldable Bead -
Rear Tire
Schwalbe Albert 29×2.5″, Gravity, Radial, Soft, Tubeless ready
120TPI Foldable Bead -
Accessories
Syncros IS Matchbox Kit
Syncros Multi-tool Matchbox 8 -
Approx weight in KG
16.64 (Tubless setup without matchbox IS ) -
Approx weight in LBS
36.68 (Tubless setup without matchbox IS ) -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
